Kode repetisi

Estimasi penggunaan: kurang dari 1 menit pada prosesor Heron (CATATAN: Ini hanya estimasi. Waktu eksekusi aktualmu mungkin berbeda.)

Latar belakang

Untuk mengaktifkan koreksi kesalahan kuantum (QEC) secara real-time, kamu perlu bisa mengontrol alur program kuantum secara dinamis selama eksekusi agar Gate kuantum bisa dikondisikan berdasarkan hasil pengukuran. Tutorial ini menjalankan kode bit-flip, yang merupakan bentuk QEC yang sangat sederhana. Tutorial ini mendemonstrasikan dynamic Circuit kuantum yang bisa melindungi Qubit yang telah diencode dari satu kesalahan bit-flip, lalu mengevaluasi performa kode bit-flip tersebut.

Kamu bisa memanfaatkan Qubit ancilla tambahan dan entanglement untuk mengukur stabilizer yang tidak mentransformasi informasi kuantum yang diencode, namun tetap memberimu informasi tentang beberapa kelas kesalahan yang mungkin telah terjadi. Kode stabilizer kuantum mengenkode $k$ Qubit logis ke dalam $n$ Qubit fisik. Kode stabilizer secara kritis berfokus pada pengoreksian sekumpulan kesalahan diskrit dengan dukungan dari grup Pauli $\Pi^n$.

Untuk informasi lebih lanjut tentang QEC, lihat Quantum Error Correction for Beginners.

Persyaratan

Sebelum memulai tutorial ini, pastikan kamu telah menginstal hal-hal berikut:

• Qiskit SDK v2.0 atau lebih baru, dengan dukungan visualisasi
• Qiskit Runtime v0.40 atau lebih baru (pip install qiskit-ibm-runtime)

Pengaturan

# Added by doQumentation — required packages for this notebook
!pip install -q qiskit qiskit-ibm-runtime

# Qiskit imports
from qiskit import (
    QuantumCircuit,
    QuantumRegister,
    ClassicalRegister,
)

# Qiskit Runtime
from qiskit_ibm_runtime import QiskitRuntimeService, SamplerV2 as Sampler

from qiskit_ibm_runtime.circuit import MidCircuitMeasure

service = QiskitRuntimeService()

Langkah 1. Petakan input klasik ke masalah kuantum

Bangun Circuit stabilizer bit-flip

Kode bit-flip adalah salah satu contoh kode stabilizer yang paling sederhana. Kode ini melindungi state dari satu kesalahan bit-flip (X) pada salah satu Qubit encoding. Pertimbangkan aksi kesalahan bit-flip $X$, yang memetakan $|0\rangle \rightarrow |1\rangle$ dan $|1\rangle \rightarrow |0\rangle$ pada salah satu Qubit kita, maka kita punya $\epsilon = \{E_0, E_1, E_2 \} = \{IIX, IXI, XII\}$. Kode ini memerlukan lima Qubit: tiga digunakan untuk mengenkode state yang dilindungi, dan dua sisanya digunakan sebagai ancilla pengukuran stabilizer.

# Choose the least busy backend that supports `measure_2`.

backend = service.least_busy(
    filters=lambda b: "measure_2" in b.supported_instructions,
    operational=True,
    simulator=False,
    dynamic_circuits=True,
)

qreg_data = QuantumRegister(3)
qreg_measure = QuantumRegister(2)
creg_data = ClassicalRegister(3, name="data")
creg_syndrome = ClassicalRegister(2, name="syndrome")
state_data = qreg_data[0]
ancillas_data = qreg_data[1:]

def build_qc():
    """Build a typical error correction circuit"""
    return QuantumCircuit(qreg_data, qreg_measure, creg_data, creg_syndrome)

def initialize_qubits(circuit: QuantumCircuit):
    """Initialize qubit to |1>"""
    circuit.x(qreg_data[0])
    circuit.barrier(qreg_data)
    return circuit

def encode_bit_flip(circuit, state, ancillas) -> QuantumCircuit:
    """Encode bit-flip. This is done by simply adding a cx"""
    for ancilla in ancillas:
        circuit.cx(state, ancilla)
    circuit.barrier(state, *ancillas)
    return circuit

def measure_syndrome_bit(circuit, qreg_data, qreg_measure, creg_measure):
    """
    Measure the syndrome by measuring the parity.
    We reset our ancilla qubits after measuring the stabilizer
    so we can reuse them for repeated stabilizer measurements.
    Because we have already observed the state of the qubit,
    we can write the conditional reset protocol directly to
    avoid another round of qubit measurement if we used
    the `reset` instruction.
    """
    circuit.cx(qreg_data[0], qreg_measure[0])
    circuit.cx(qreg_data[1], qreg_measure[0])
    circuit.cx(qreg_data[0], qreg_measure[1])
    circuit.cx(qreg_data[2], qreg_measure[1])
    circuit.barrier(*qreg_data, *qreg_measure)
    circuit.append(MidCircuitMeasure(), [qreg_measure[0]], [creg_measure[0]])
    circuit.append(MidCircuitMeasure(), [qreg_measure[1]], [creg_measure[1]])

    with circuit.if_test((creg_measure[0], 1)):
        circuit.x(qreg_measure[0])
    with circuit.if_test((creg_measure[1], 1)):
        circuit.x(qreg_measure[1])
    circuit.barrier(*qreg_data, *qreg_measure)
    return circuit

def apply_correction_bit(circuit, qreg_data, creg_syndrome):
    """We can detect where an error occurred and correct our state"""
    with circuit.if_test((creg_syndrome, 3)):
        circuit.x(qreg_data[0])
    with circuit.if_test((creg_syndrome, 1)):
        circuit.x(qreg_data[1])
    with circuit.if_test((creg_syndrome, 2)):
        circuit.x(qreg_data[2])
    circuit.barrier(qreg_data)
    return circuit

def apply_final_readout(circuit, qreg_data, creg_data):
    """Read out the final measurements"""
    circuit.barrier(qreg_data)
    circuit.measure(qreg_data, creg_data)
    return circuit

def build_error_correction_sequence(apply_correction: bool) -> QuantumCircuit:
    circuit = build_qc()
    circuit = initialize_qubits(circuit)
    circuit = encode_bit_flip(circuit, state_data, ancillas_data)
    circuit = measure_syndrome_bit(
        circuit, qreg_data, qreg_measure, creg_syndrome
    )

    if apply_correction:
        circuit = apply_correction_bit(circuit, qreg_data, creg_syndrome)

    circuit = apply_final_readout(circuit, qreg_data, creg_data)
    return circuit

circuit = build_error_correction_sequence(apply_correction=True)
circuit.draw(output="mpl", style="iqp", cregbundle=False)

Langkah 2. Optimalkan masalah untuk eksekusi kuantum

Untuk mengurangi total waktu eksekusi job, primitif Qiskit hanya menerima Circuit dan observable yang sesuai dengan instruksi dan konektivitas yang didukung oleh sistem target (disebut sebagai ISA circuit dan observable). Pelajari lebih lanjut tentang transpilasi.

Buat ISA Circuit

from qiskit.transpiler.preset_passmanagers import generate_preset_pass_manager

pm = generate_preset_pass_manager(backend=backend, optimization_level=1)
isa_circuit = pm.run(circuit)

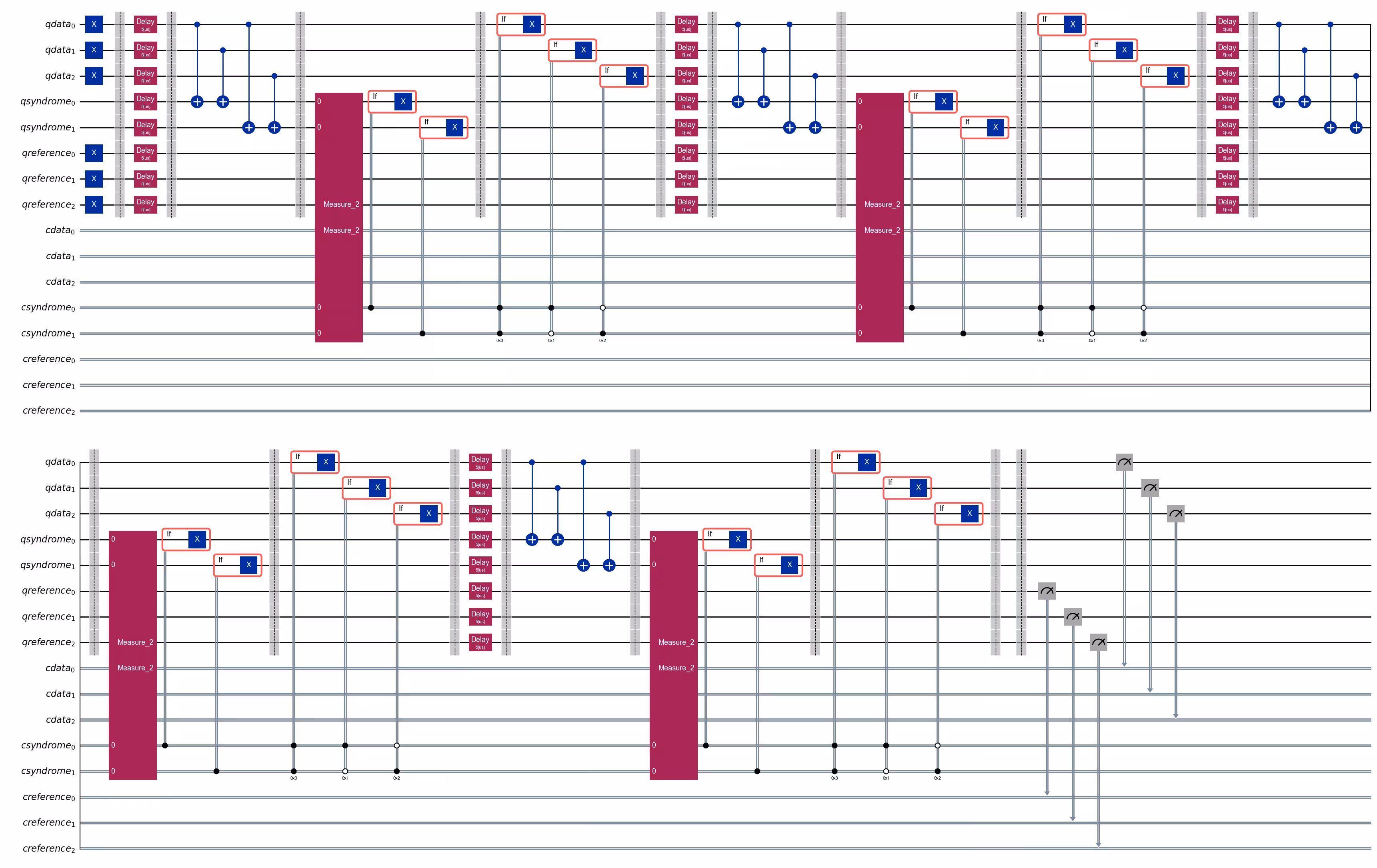

isa_circuit.draw("mpl", style="iqp", idle_wires=False)

no_correction_circuit = build_error_correction_sequence(
    apply_correction=False
)

isa_no_correction_circuit = pm.run(no_correction_circuit)

Langkah 3. Eksekusi menggunakan primitif Qiskit

Jalankan versi dengan koreksi yang diterapkan dan satu tanpa koreksi.

sampler_no_correction = Sampler(backend)
job_no_correction = sampler_no_correction.run(
    [isa_no_correction_circuit], shots=1000
)
result_no_correction = job_no_correction.result()[0]

sampler_with_correction = Sampler(backend)

job_with_correction = sampler_with_correction.run([isa_circuit], shots=1000)
result_with_correction = job_with_correction.result()[0]

print(f"Data (no correction):\n{result_no_correction.data.data.get_counts()}")
print(
    f"Syndrome (no correction):\n{result_no_correction.data.syndrome.get_counts()}"
)

Data (no correction):
{'111': 878, '011': 42, '110': 35, '101': 40, '100': 1, '001': 2, '000': 2}
Syndrome (no correction):
{'00': 942, '10': 33, '01': 22, '11': 3}

print(f"Data (corrected):\n{result_with_correction.data.data.get_counts()}")
print(
    f"Syndrome (corrected):\n{result_with_correction.data.syndrome.get_counts()}"
)

Data (corrected):
{'111': 889, '110': 25, '000': 11, '011': 45, '101': 17, '010': 10, '001': 2, '100': 1}
Syndrome (corrected):
{'00': 929, '01': 39, '10': 20, '11': 12}

Langkah 4. Pasca-proses, kembalikan hasil dalam format klasik

Kamu bisa melihat bahwa kode bit-flip berhasil mendeteksi dan mengoreksi banyak kesalahan, sehingga menghasilkan lebih sedikit kesalahan secara keseluruhan.

def decode_result(data_counts, syndrome_counts):
    shots = sum(data_counts.values())
    success_trials = data_counts.get("000", 0) + data_counts.get("111", 0)
    failed_trials = shots - success_trials
    error_correction_events = shots - syndrome_counts.get("00", 0)
    print(
        f"Bit flip errors were detected/corrected on {error_correction_events}/{shots} trials."
    )
    print(
        f"A final parity error was detected on {failed_trials}/{shots} trials."
    )

# non-corrected marginalized results
data_result = result_no_correction.data.data.get_counts()
marginalized_syndrome_result = result_no_correction.data.syndrome.get_counts()

print(
    f"Completed bit code experiment data measurement counts (no correction): {data_result}"
)
print(
    f"Completed bit code experiment syndrome measurement counts (no correction): {marginalized_syndrome_result}"
)
decode_result(data_result, marginalized_syndrome_result)

Completed bit code experiment data measurement counts (no correction): {'111': 878, '011': 42, '110': 35, '101': 40, '100': 1, '001': 2, '000': 2}
Completed bit code experiment syndrome measurement counts (no correction): {'00': 942, '10': 33, '01': 22, '11': 3}
Bit flip errors were detected/corrected on 58/1000 trials.
A final parity error was detected on 120/1000 trials.

# corrected marginalized results
corrected_data_result = result_with_correction.data.data.get_counts()
corrected_syndrome_result = result_with_correction.data.syndrome.get_counts()

print(
    f"Completed bit code experiment data measurement counts (corrected): {corrected_data_result}"
)
print(
    f"Completed bit code experiment syndrome measurement counts (corrected): {corrected_syndrome_result}"
)
decode_result(corrected_data_result, corrected_syndrome_result)

Completed bit code experiment data measurement counts (corrected): {'111': 889, '110': 25, '000': 11, '011': 45, '101': 17, '010': 10, '001': 2, '100': 1}
Completed bit code experiment syndrome measurement counts (corrected): {'00': 929, '01': 39, '10': 20, '11': 12}
Bit flip errors were detected/corrected on 71/1000 trials.
A final parity error was detected on 100/1000 trials.
